Vitreous Enamel Panel for building decoration engineering

Hongfei Group/Pufeier has been committed to the forward-looking research and development and market application promotion of new functional enamel materials. It specializes in the research and development, design, production, promotion, manufacturing and sales of new functional enamel materials. It is a leader in the domestic enamel industry and domestic A leading manufacturer of enamel decorative panels in terms of manufacturing and sales.

•
• Introduction to VE Panel

• The American Society for Testing and Materials (testing agency) defines enamel as: a porcelain or vitrified inorganic coating that is attached to the metal surface by heating and melting;

• Enamel products have both the solidity of metal and the excellent physical and chemical properties of glass. In particular, the enamel surface has the advantages of being able to be decorated in various ways and having an elegant appearance;

• According to the material of enamel and combined with the actual production process, enamel can be described: glassy inorganic material is coated on a metal substrate and fired at a high temperature of 900° to fuse the two into a new type of corrosion-resistant, high-temperature-resistant, and wear-resistant. It is a composite material with smooth surface, rich colors, easy to clean, anti-bacteria and no pollution to the environment.

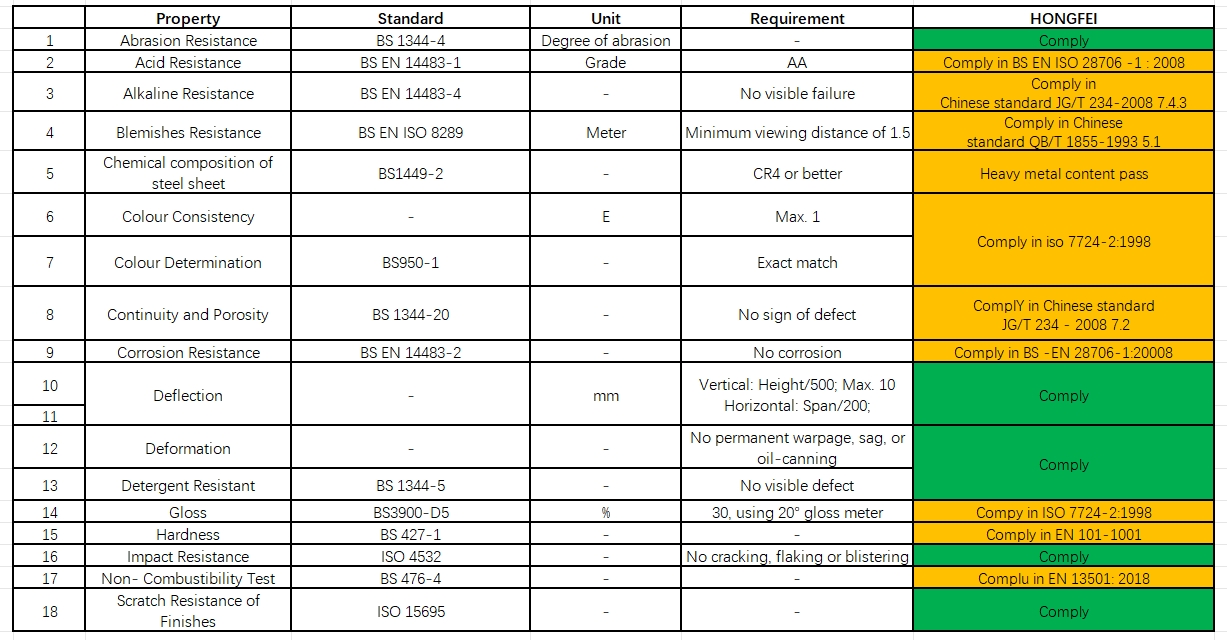

• VE Panel properties
• 1. The hardness of enamel is 6.0-7.0 on the Mohs scale, which is higher than steel and lower than gemstones;
• 2. Wear-resistant, carving-resistant, graffiti-resistant, easy to clean, rich in color, bright in color, and strong in wear resistance, much higher than baked enamel, fluorocarbon spraying and powder spraying;
• 3. It does not fade, has strong weather resistance, and does not age. Enamel has strong resistance to the atmosphere and light. Under direct sunlight, the color will not change, the service life is up to 50 years, and the physical and chemical properties remain unchanged;
• 4. The surface is dense and smooth, not conducive to bacterial growth, resistant to chemical erosion, acid and alkali resistance, and combustion performance is A1 level;
• 5. High temperature resistance, low temperature resistance, good temperature resistance and degeneration, and can withstand sudden changes in hot and cold temperatures up to 400°;
• 6. Artistic expression can be performed on the surface: decals, silk screen printing, blue and white porcelain, color printing, etc. will not change the material properties after sintering;
• 7. It is non-toxic, does not decompose, does not spill harmful substances, does not emit harmful rays to the human body, is hygienic and safe for the human body, and does not cause any damage to the environment;
• 8. High voltage resistance and electrical insulation. The 1mm thick enamel coating can withstand 10,000V voltage and can be used as a high-voltage insulating coating;
• 9. Antibacterial, sterilizing, photocatalytic self-cleaning, thermal catalytic self-cleaning, biological activity compatible with human body, photoluminescence, electroluminescence, far-infrared radiation and other properties.

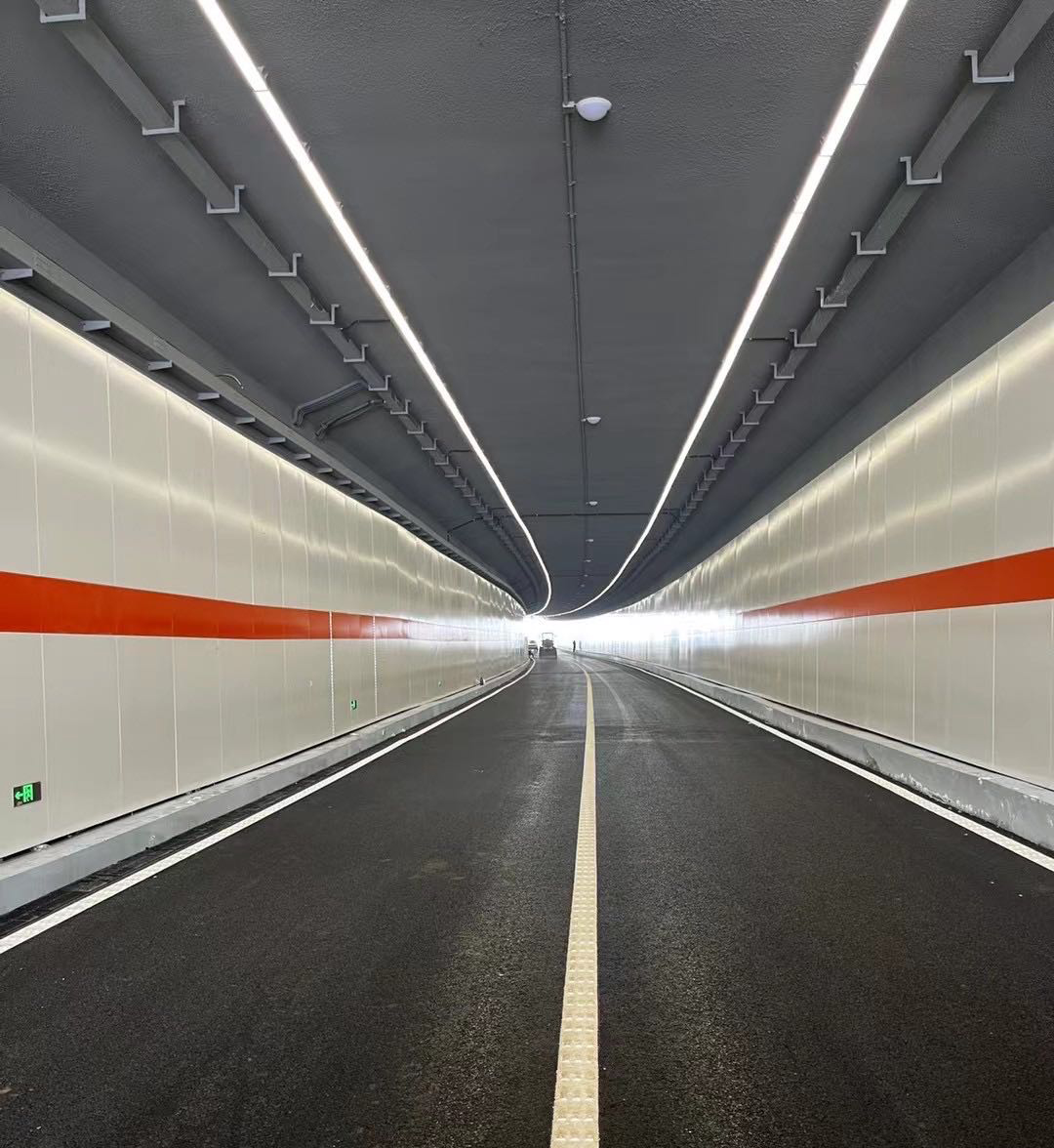

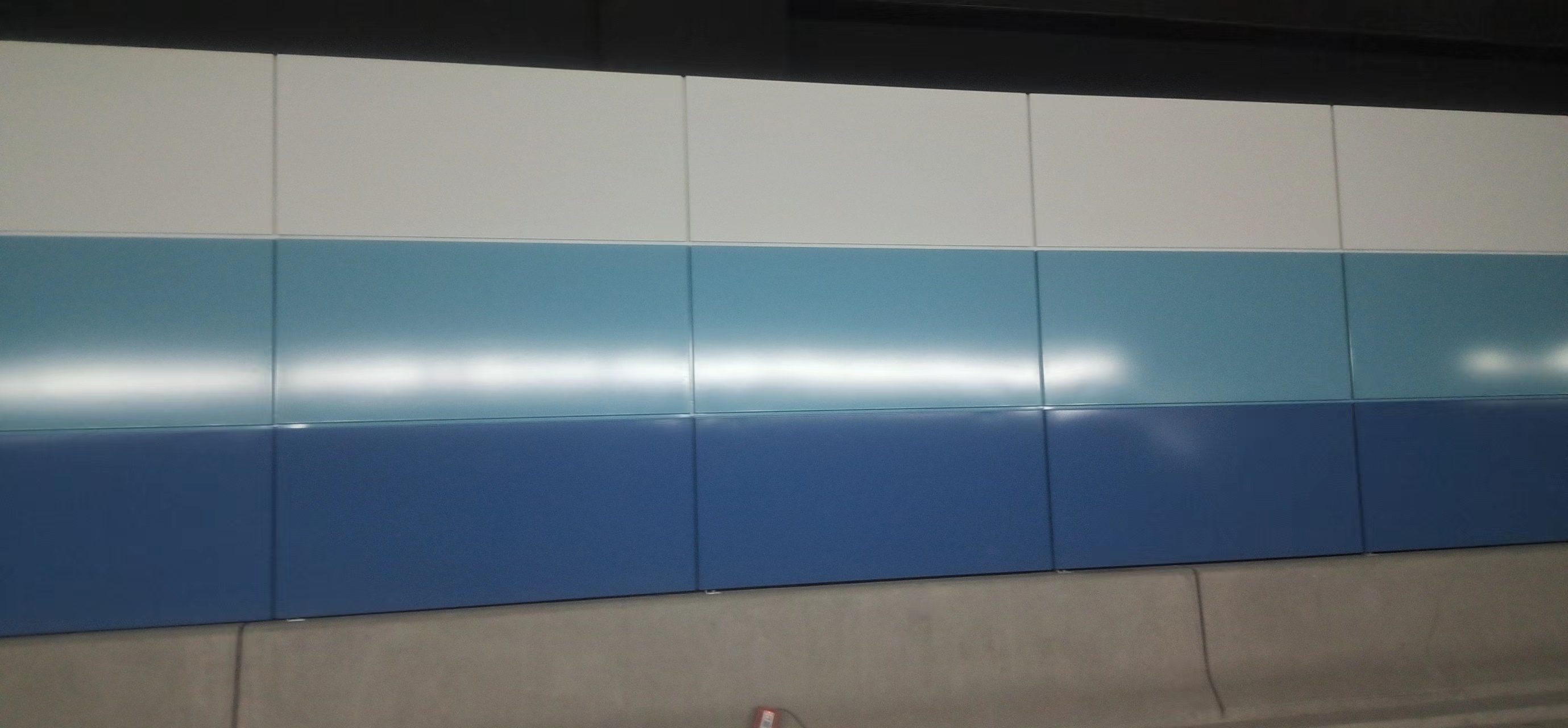

• Advantages of VE Panels for tunnel decoration:
• 1. Easy to clean, the surface is dirt-resistant and can withstand more than 200,000 cleanings;
• 2. The surface has high hardness and can resist cleaning by professional sweeper nylon brushes, and there will be no scratches on the surface;
• 3. Good corrosion resistance, able to resist corrosion from various automobile exhaust gases and cleaning agents;
• 4. It will not rust in a humid environment. The back of the enamel steel plate is compounded with 10-15mm high aluminum honeycomb. The surface is smooth without unevenness and has good wind pressure resistance;
